What Space Is Needed for a Lifting Bed Frame Mechanism to Operate?

Upgrading your bedroom storage feels exciting until the mattress jams against the ceiling. Precision matters when you deal with moving furniture parts in confined spaces. Installing a lift system without calculating operating clearance often results in damaged walls, restricted access, or severe safety hazards. Whether you are upgrading a primary bedroom, outfitting a van conversion, or building custom storage, precise spatial planning dictates your hardware selection. This guide explores the mechanics of bed lift dimensions and clearances. We provide an evidence-based framework for calculating the vertical, lateral, and internal space required for different configurations. You will learn how to measure accurately and avoid expensive installation mistakes before you even buy your hardware.

Key Takeaways

• Vertical Clearance: A standard gas lift bed mechanism typically requires 30 to 45 degrees of opening arc, translating to 40–60 inches of overhead clearance depending on bed size.

• Lateral Footprint: Side-lift vs. end-lift hardware fundamentally alters room layout requirements; side-lifts require wider aisle access but lower ceiling height.

• Internal Cavity Depth: Mechanisms consume 2–4 inches of internal storage depth; ignoring this limits usable volume.

• Weight-to-Angle Ratio: Mattress weight dictates the required gas strut length and mounting angle, which directly impacts the opening footprint.

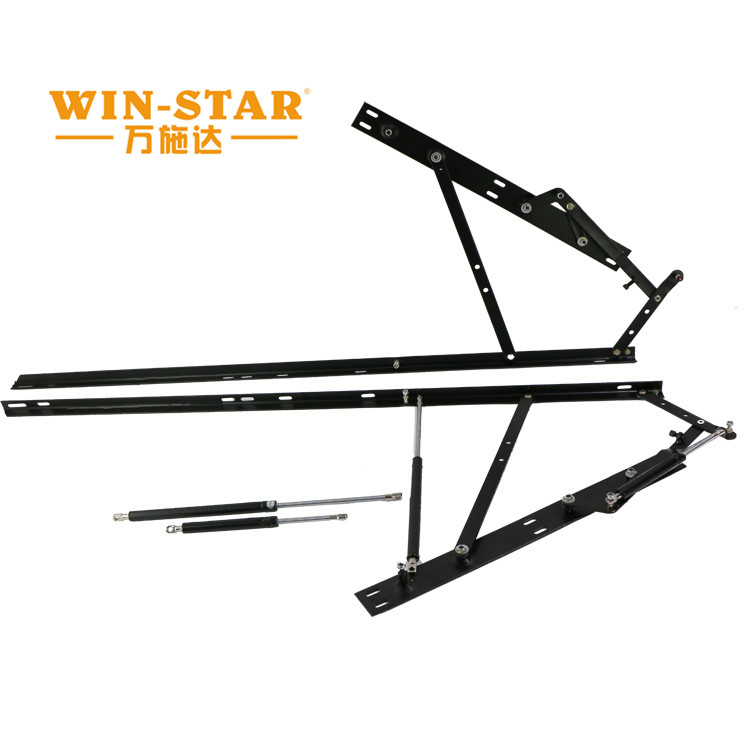

Understanding the Opening Arc of a Lifting Bed Frame Mechanism

Every lifting mechanism operates on a defined pivot point. The geometry of this lift dictates how much room you need above the bed. Hinge placement determines the maximum height reached at the foot or side. If you install hinges closer to the center, the foot of the bed rises less. If you push the hinges closer to the headboard, the maximum opening height increases dramatically. You must evaluate this 3D arc before purchasing any lifting bed frame mechanism.

Wall proximity creates another serious constraint. A standard hinge articulation requires a gap between the mattress and the wall. This gap usually measures one to three inches. If you push the frame flush against the wall, the mattress will bind against the drywall as it lifts. This friction damages fabrics and prevents the locking struts from engaging properly.

You also need to map out your ceiling layout. Many bedrooms feature architectural obstructions. Sloped ceilings, modern ceiling fans, or low-hanging pendant lights often intersect the maximum opening arc. An open bed frame behaves like a giant sail swinging upward. You must project this arc across the entire footprint of the mattress.

Clearance calculations always require specific assumptions. Do not measure using just the raw wooden or metal frame. You must add the exact thickness of your mattress. You should also account for heavy winter bedding or mattress toppers. A 12-inch memory foam mattress adds a massive upward extension to the final opening arc compared to an 8-inch foam pad.

End-Lift vs. Side-Lift: Aligning the Bed Lift Mechanism with Room Dimensions

Your room layout dictates the style of hinge you should install. Choosing the wrong configuration leads to immediate post-installation friction. You need to align your hardware choice with your walking space and ceiling height.

An end-lift configuration lifts from the foot of the bed. It demands maximum vertical space overhead. This setup works beautifully for long, narrow rooms. It suits spaces with standard eight-foot ceilings or higher. The primary limitation of an end-lift involves physical reach. When you use King or Queen sizes, retrieving items stored near the headboard becomes difficult. You often have to crawl inside the storage cavity to reach the back corners.

A side-lift configuration opens laterally. This approach requires minimal vertical height. However, it demands at least 36 inches of open lateral aisle space. A human operator needs room to stand, grip the side panel, and lift safely. Side-lifts excel in rooms with pitched roofs, alcoves, or extremely tight foot-of-bed walkways. They are incredibly popular in custom RV builds or attic bedrooms.

To avoid spatial conflicts, match your mechanism opening style directly to your floorplan limits using the matrix below.

Configuration Evaluation Matrix

Factoring Hardware and Mattress Weight into Spatial Planning

The weight of your mattress directly changes the required geometry of your hardware. A heavier mattress demands longer gas struts or stronger torsion springs. Longer struts alter the mounting geometry. They require you to position the brackets further down the frame. This shift directly impacts the resulting opening angle and the total overhead space required.

Platform materials also change this dynamic. Using a slatted lift bed frame drastically reduces the overall lifting weight. A lighter frame allows you to install shorter, more compact hardware. Compact hardware consumes far less internal storage space. Heavy solid plywood bases require massive industrial struts, which eat up valuable inches inside your storage cavity.

Gas struts operate using a specific Newton (N) force variable. This force rating must match your lifting load perfectly. If you install struts that are too strong, the bed will spring open violently. A violent opening requires extra safety clearance to protect your face and the ceiling. If the struts are too weak, the mechanism fails to hold the maximum height. The bed will slowly sink, removing your safe access to the storage area.

• Best Practice: Always weigh your mattress and frame together before buying struts. Manufacturers calibrate hardware for specific weight ranges (e.g., 40kg, 60kg, 90kg).

• Common Mistake: Ignoring the weight of heavy bedding. Winter duvets and thick pillows add enough weight to overwhelm borderline gas struts.

Space-Saving Alternatives: When a Standard Lift Won't Fit

Sometimes a traditional arc simply will not work. Small bedrooms, studio apartments, and custom van conversions often lack the necessary ceiling or aisle clearances. In these extreme scenarios, standard hinge systems fail.

Zero-wall clearance hinges offer one specialized alternative. Standard hinges pivot directly upward. Zero-wall mechanisms use a forward-gliding track. They pull the entire mattress horizontally away from the wall before the vertical lift begins. This complex motion allows you to push the bed frame entirely flush against the headboard without binding the fabric.

Multi-functional furniture provides another layout strategy. You might evaluate the spatial footprint of a folding sofa bed frame compared to a dedicated hydraulic lift bed. A folding sofa system collapses into a seating arrangement, reclaiming open floor space during the day. A dedicated hydraulic bed always consumes floor space but offers massive sub-mattress storage. Your choice depends on whether you prioritize floor space or hidden volume.

1. Assess daily usability. A folding sofa requires daily effort to convert. A hydraulic lift requires occasional effort to access storage.

2. Measure mechanical complexity. Zero-wall hinges have multiple sliding tracks. More moving parts mean higher maintenance requirements.

3. Compare maintenance risks. Advanced space-saving hinges are susceptible to track debris. Standard gas strut systems offer simpler, more reliable long-term operation.

Implementation Risks: Common Clearance and Measurement Errors

Many builders measure empty room dimensions and ignore dynamic variables. This oversight ruins projects. You must account for how materials behave once the frame leaves its resting state.

The mattress deflection factor catches many installers by surprise. You cannot measure clearance without accounting for mattress sag. When a bed elevates to 45 degrees, gravity pulls the mattress downward. Non-rigid mattresses will slide toward the headboard or bow in the center. If your calculations lack a buffer for this deflection, the sagging mattress will trap items or scrape the wall.

Internal hardware collisions present another frequent risk. Mechanisms collapse inward when the bed lowers. If you store stiff boxes or luggage too close to the hinge zones, the collapsing struts will strike them. This leads to crushed belongings. Worse, it can permanently bend the gas cylinders, ruining the gas lift bed mechanism entirely.

You must also identify safety zones for the operator. Ensure you have enough physical space to stand securely while initiating and closing the bed lift mechanism. Operating heavy hydraulic lifts from an awkward, cramped angle creates massive pinch point risks.

Finally, respect installation tolerances. DIY and professional assemblies alike require micro-adjustments. You need wiggle room to square the frame properly. If the frame sits tightly wedged between two walls, you cannot adjust the hardware to prevent lateral racking (side-to-side wobble) as the bed lifts.

Shortlisting Your Hardware: A Pre-Purchase Measurement Checklist

Do not order hardware based on a rough guess. Proper execution relies on a methodical measurement process. Follow this sequence to match your room constraints with the correct hardware.

1. Step 1: Map the Maximum Arc. Measure your floor to the ceiling. Subtract the height of the bed base. Subtract the thickness of your mattress and bedding. The remaining number dictates the absolute maximum lift height your hinges can support.

2. Step 2: Define the Approach Zone. Verify you have at least 24 to 36 inches of clear standing room at the point of lift. You need proper leverage to pull the frame down safely against the force of the gas struts.

3. Step 3: Calculate Internal Loss. Deduct the collapsed hardware footprint from the usable storage volume. Hinges usually consume a 2-inch to 4-inch deep zone along the side panels. Never plan to store fragile items in these impact zones.

4. Step 4: Verify Weight Capacities. Cross-reference the mechanism’s spec sheet with your exact setup. Match the N-rating (Newton force) directly to your specific mattress weight and frame materials.

Conclusion

Evaluating space for a lifting mechanism requires calculating a dynamic 3D arc, not just looking at a static 2D floorplan. Hardware choice directly influences how a bed interacts with your ceiling, walls, and floor space. Overlooking mattress thickness, deflection, or lateral standing room will compromise the functionality and safety of your storage system.

Measure your exact ceiling heights and weigh your mattress before you finalize any furniture purchase. Map out the internal hinge zones to avoid crushing your stored items. Taking these precise steps ensures your lifted bed operates smoothly, safely, and efficiently for years to come.

FAQ

Q: How far from the wall does a lift-up bed need to be?

A: Generally, you need a gap of 1 to 3 inches between the wall and the bed frame. The exact distance depends on the hinge type and headboard design. This spacing prevents the mattress fabric and frame from scraping against the wall during the lifting articulation.

Q: Do gas struts require a specific mounting angle to save space?

A: Yes, standard mounting positions keep the struts between 15 and 30 degrees when the bed is closed. Altering this angle changes both the final opening height and the lifting capacity. Lower angles require more force to open initially but consume less internal depth.

Q: Can I install a lifting mechanism on an existing slatted bed frame?

A: Yes, but the internal cavity must have robust structural mounting points. The side panels must be thick enough to handle the severe torque generated by the gas struts. If the wood is too thin, the mechanism will split the frame during operation.

Q: What happens if my ceiling is too low for the bed to fully open?

A: The mechanism will bind and fail to reach its locking threshold. This prevents the gas struts from extending fully into their locked position. You will have to manually prop the bed open, which creates a major safety hazard for anyone reaching inside.
