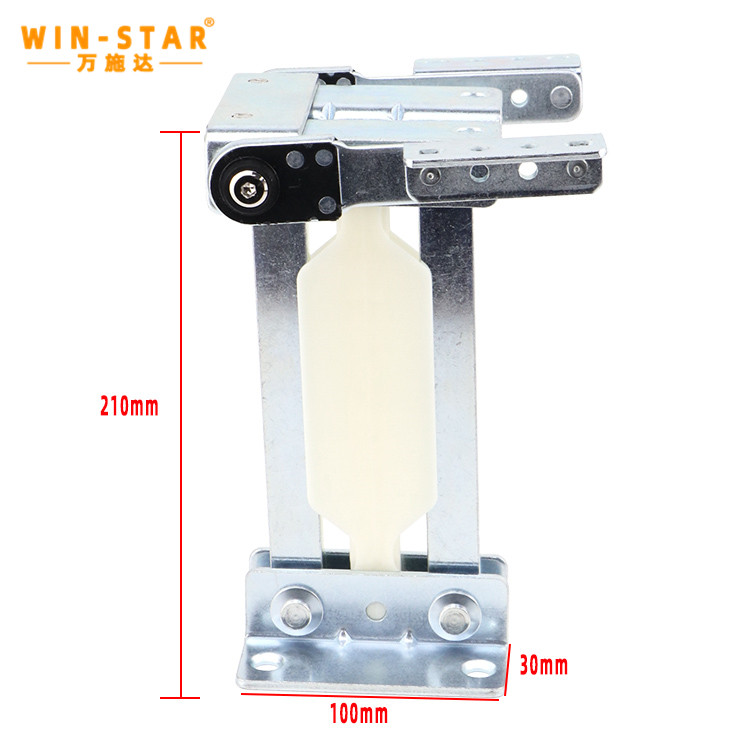

210mm WINSTAR Multifunctional Sofa Hinge with Front-Back Mechanism

Overview

The 210mm WINSTAR Multifunctional Sofa Hinge is engineered to transform standard seating into versatile sleeping arrangements through a precise front-back adjustment mechanism. Crafted from heavy-duty iron with a refined silver finish, this hardware component offers exceptional structural integrity for convertible furniture designs. The mechanism operates with a smooth, controlled motion, allowing users to effortlessly reconfigure their living spaces without mechanical resistance. By integrating advanced stamping techniques and stringent structural testing, this hinge provides furniture manufacturers with a reliable foundation for sleeper sofas, ensuring long-term performance and user satisfaction. The metallic silver surface undergoes specialized anti-corrosion treatments, maintaining its sleek appearance while actively resisting environmental wear and oxidation.

Features

Dual-Direction Front-Back Adjustment

The sophisticated sliding track system extends the seating depth by up to 300mm, instantly maximizing the available resting area within compact furniture frames. This fluid mechanism operates without jarring or sticking, providing a premium tactile experience for the end-user while optimizing spatial efficiency in modern interiors.

Advanced Load-Distribution Technology

Engineered with reinforced iron gears and precision-machined bearings, the hinge structure evenly disperses up to 200kg of static and dynamic weight. This strategic weight distribution minimizes localized stress on upholstery seams and wooden frame joints, significantly reducing the risk of premature sagging or structural failure in the finished furniture piece.

Safety-Enhanced Anti-Pinch Design

Recognizing the importance of consumer safety, the moving components feature integrated anti-pinch guards and a controlled, slow-close dampening effect. This thoughtful engineering prevents accidental finger injuries during the conversion process, ensuring a secure and family-friendly operation that adds tangible value to residential furniture collections.

Industrial-Grade Surface Treatment

The silver iron construction is fortified through a rigorous electroplating and anti-rust baking paint process. Having passed comprehensive salt spray testing, the surface exhibits superior resistance to oxidation and moisture, guaranteeing long-lasting corrosion protection even in humid coastal climates or demanding environmental conditions.

Streamlined Maintenance & Upkeep

Designed for prolonged operational life, the hinge incorporates easily accessible lubrication points concealed beneath removable protective covers. This user-centric approach allows for straightforward semi-annual maintenance, ensuring the mechanical components retain their whisper-quiet operation and smooth glide over years of continuous use.

Application

The 210mm WINSTAR Multifunctional Sofa Hinge serves as a critical component for a wide spectrum of space-efficient furniture designs. It is particularly advantageous for compact living room setups, multifunctional guest suites, and recreational vehicles (RVs) where maximizing every square inch is essential. The standardized pre-drilled mounting holes are scientifically positioned to ensure flawless compatibility with both traditional solid wood and contemporary metal modular sofa frames. This meticulous alignment dramatically accelerates the batch assembly process on factory production lines, reducing labor time and minimizing installation errors.

Whether upholstered in breathable fabrics, dense microfibers, or premium synthetic leathers, the hinge operates flawlessly without interfering with the material's drape or tension. The sleek silver finish seamlessly blends with internal mechanisms, while the robust front-back sliding action proves indispensable for L-shaped sectionals, pull-out sleeper sofas, and convertible futons. By integrating this hardware, manufacturers can confidently expand their product portfolios to meet the growing consumer demand for versatile, dual-purpose residential and commercial furnishings.

FAQ

Q: How much clearance space is required behind the sofa for the bed extension mechanism to function properly?

A: To ensure an unimpeded and fluid front-back transition, a minimum clearance of 100mm is required between the furniture backrest and the wall. Comprehensive spatial diagrams and dimensional blueprints are provided within the technical installation manual to assist your design team in optimizing the frame layout.

Q: Can this 210mm hinge system be retrofitted into existing or legacy sofa designs?

A: Yes, integration into existing models is highly feasible, provided the structural frame features compatible load-bearing mounting points. Our engineering support team is available to supply a detailed retrofit compatibility checklist and can advise on minor frame modifications to accommodate the sliding track.

Q: What is the verified operational lifespan of the internal sliding mechanism?

A: The iron hinge assembly has been subjected to rigorous mechanical fatigue testing, successfully enduring over 20,000 complete extension and retraction cycles under a 200kg load. This translates to more than five years of intensive daily operation. Additionally, standardized replacement components remain available to support long-term maintenance contracts.

Q: Does the hardware comply with international furniture manufacturing standards?

A: Absolutely. The structural integrity, weight capacity, and safety features of this hinge meet stringent international testing protocols, including SGS and BIFMA standards. This comprehensive certification provides reliable documentation for global export, ensuring your finished sofa beds comply with major regional market regulations.

Manufacturing & Supply Chain Capabilities

Our production infrastructure is built to support large-scale furniture manufacturing demands with uncompromising precision. Backed by automated stamping presses and meticulously controlled assembly lines, we maintain a robust production capacity that guarantees stable lead times and secure supply chains for substantial procurement volumes.

We offer comprehensive OEM and ODM customization services tailored to your specific project requirements. Our engineering department can flexibly adjust hole pitches, overall dimensions, surface color finishes, and specialized load-bearing specifications to perfectly align with your unique product development roadmap.

To safeguard your investment during transit, every shipment utilizes industrial-grade packaging protocols. The hinges are securely packed in thickened, impact-resistant cartons (10 sets per carton, measuring 40*35*20cm) and consolidated on standardized pallets. This methodical approach not only maximizes container loading efficiency but also provides exceptional protection against vibration, collision, and abrasion during extended international sea freight logistics.
