ZD-I030 Lift Up Top Coffee Table Lifting Frame Mechanism Hinge Hardware Fitting with Spring

Product Overview & Technical Specifications

The ZD-I030 Lift Up Top Coffee Table Lifting Frame Mechanism Hinge Hardware Fitting with Spring represents a foundational structural component for modern, transformable furniture design. Crafted from solid, industrial-grade iron with a substantial 3.0mm thickness, this lifting mechanism delivers exceptional load-bearing stability and unyielding structural rigidity. When handled, the cold, dense feel of the heavy-duty iron conveys immediate confidence in its physical integrity and long-lasting durability.

Item Name	ZD-I030 Lift Up Top Coffee Table Lifting Frame Mechanism Hinge Hardware Fitting with Spring
Material	Iron
Usage	Furniture table
Weight	2.7kgs each set
Thickness	3.0mm
MOQ	100sets
Packing	2sets/ctn
HS code	8302100000

Each individual set weighs precisely 2.7kgs, providing a grounded, balanced counterweight that anchors the base and prevents furniture from tipping or shifting during the extension process. Manufactured under strict ISO9001 quality management systems and verified by SGS certifications, this hardware meets the most stringent global compliance standards for commercial and residential furniture manufacturing.

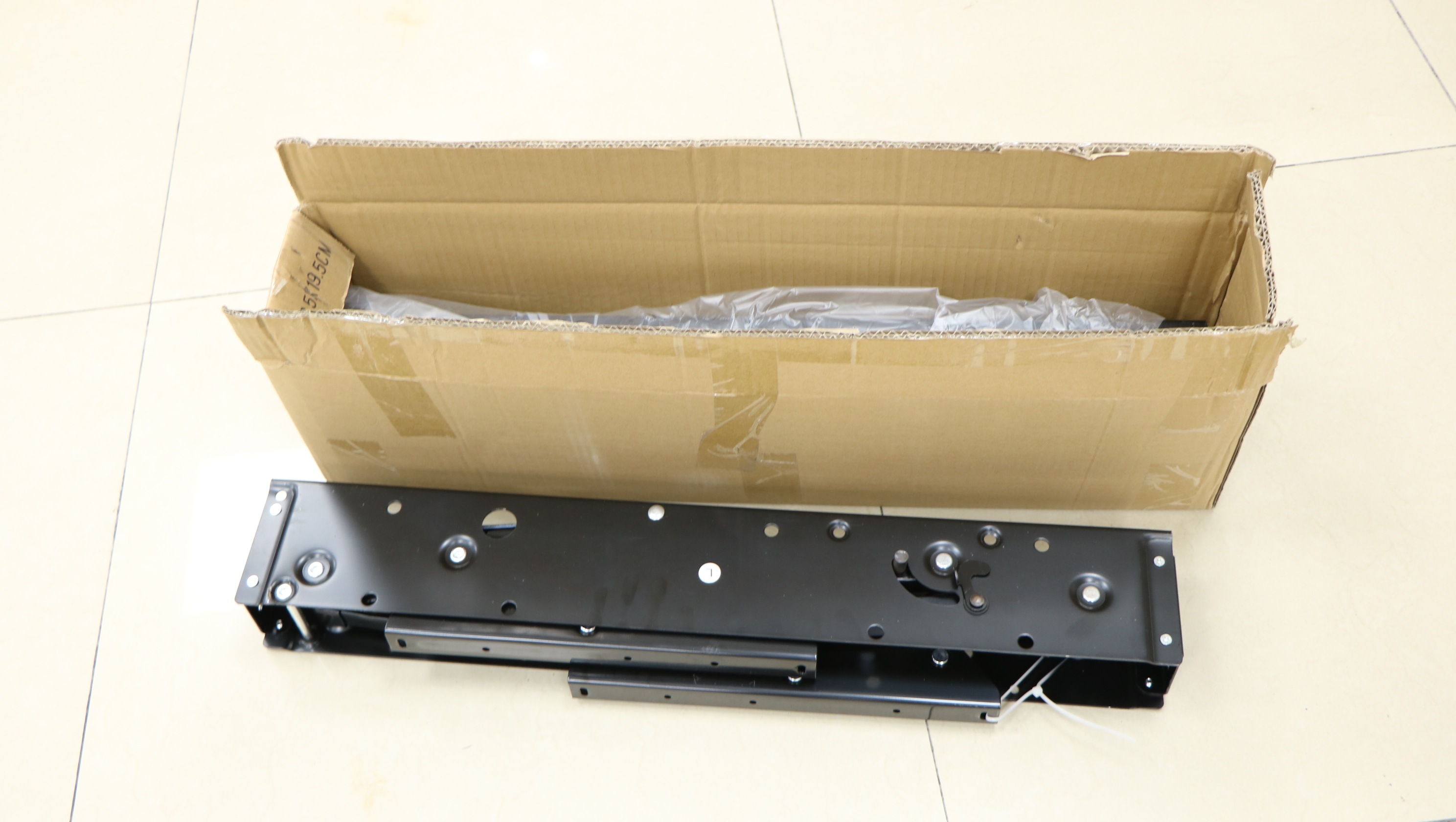

Beyond the raw physical dimensions, the surface of the iron undergoes an advanced chemical deposition and specialized baking paint process. This meticulous surface treatment results in a smooth, matte finish that feels slightly textured to the touch, effectively resisting daily fingerprints, moisture, and surface abrasions. More importantly, this protective layer has successfully passed a rigorous 72-hour salt spray test. This ensures outstanding anti-rust and anti-corrosion performance, maintaining the mechanism's pristine appearance and structural integrity even when deployed in humid coastal environments or demanding industrial settings. The standardized packing of 2 sets per carton ensures that the heavy hardware is securely isolated during transit, preventing metal-on-metal scratching, while the designated HS code 8302100000 streamlines international customs clearance for global procurement operations.

Core Features & Engineering Excellence

The mechanical architecture of this lifting frame is meticulously engineered for fluid motion and long-term operational reliability. Every pivot point and tension spring is precisely calibrated to eliminate harsh metallic grinding sounds, replacing them with a quiet, controlled glide as the table surface elevates. When engaged, the user experiences a continuous motion devoid of sudden jerks or stuttering. The precision-stamped mounting holes facilitate rapid and accurate installation on the assembly line, reducing labor time and minimizing alignment errors for furniture builders.

1. Spring-Assisted Lift – Allows the tabletop to rise smoothly and stay in place at different angles. The integrated coil springs absorb the initial lifting force, requiring minimal physical effort from the user. As the platform reaches its peak, the spring tension holds the surface firmly in position, preventing sudden drops and ensuring a stable workspace or dining area.

2. Gas Struts or Springs – Some mechanisms use gas struts for a softer lift, while others use torsion springs. The ZD-I030 model utilizes a heavy-duty spring configuration that provides consistent, linear resistance. This mechanical consistency translates to a predictable, controlled motion that protects both the furniture frame and the delicate items resting on the tabletop.

3. Durable Hinges – Heavy-duty hinges ensure stability when lifting and lowering the tabletop. These pivot joints have been subjected to hundreds of thousands of high-intensity fatigue tests. This extreme cycle testing guarantees that the hinges will not loosen, warp, or degrade, maintaining their strict alignment over an extended operational lifespan.

4. Adjustable Tension – Some models let you adjust the spring tension for easier lifting. By modifying the attachment points, manufacturers can calibrate the lift force to match specific tabletop weights, whether working with lightweight engineered wood panels or denser natural stone surfaces, ensuring optimal performance across different product lines.

5. Space-Saving Design – Ideal for storage or converting the table into a higher surface. This compact hardware footprint remains entirely concealed when the table is closed, maximizing the internal cavity space for hidden storage compartments while instantly transforming a low-profile aesthetic into an ergonomic desk height.

Versatile Applications & Customization Services

While originally engineered for multi-functional coffee tables, the robust 3.0mm iron construction and reliable spring mechanism make this hardware highly adaptable across a diverse range of demanding industries. The secure locking angles and heavy load capacity are perfectly suited for automotive modifications, such as folding workbenches in commercial vans or space-saving tables in recreational vehicles. In marine environments, the salt-spray tested coating prevents premature oxidation, while in automotive applications, the rigid locking mechanism withstands continuous road vibrations without rattling. Furthermore, industrial machinery enclosures, specialized medical equipment carts, and heavy-duty toolboxes benefit immensely from the controlled lifting motion and anti-corrosive finish.

To support diverse manufacturing requirements, comprehensive OEM and ODM customization services are available. Production lines can adjust the overall length of the mechanism, alter the surface color finish to match specific design palettes, calibrate specific spring tensions, and modify connection brackets to align with unique structural blueprints. From initial CAD drawing analysis to custom mold creation and final mass production, the engineering team provides end-to-end technical support to bring custom concepts to reality.

Evaluating physical components is a crucial step for accurate production planning. We support free sample requests and accommodate low Minimum Order Quantity (MOQ) trial runs, allowing engineering and procurement teams to test the mechanical integration firsthand before committing to larger volumes. Backed by mature, scaled production lines, large-capacity orders are processed with rapid turnaround times. This ensures strict adherence to tight delivery schedules while maintaining highly competitive pricing structures, empowering manufacturers to optimize their supply chain efficiency.
