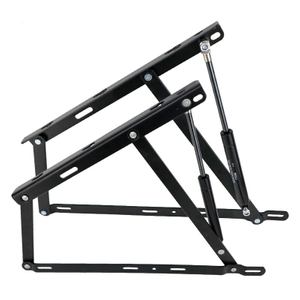

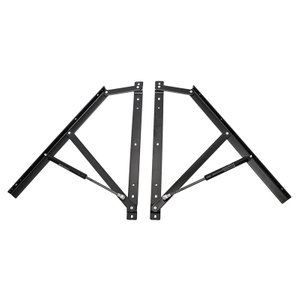

ZD-I014-A1 Modern Folding Furniture Bed Frame Sofa Mechanism With Gas Spring

Product Specifications & Structural Integrity

The foundation of any reliable transformable furniture lies in its core structural components. This folding sofa bed frame mechanism is engineered from premium 3.0mm thick iron, delivering exceptional load-bearing capacity and unyielding stability. When handled during assembly, the sheer mass of 2.3kgs per pair immediately conveys a sense of industrial-grade durability. The sleek black surface treatment offers a smooth, corrosion-resistant tactile finish that protects the metal against environmental wear while maintaining a professional appearance inside the furniture chassis. Furniture manufacturers will appreciate the reinforced support beams designed to effortlessly manage the combined weight of heavy memory foam mattresses and fully loaded bottom storage compartments without flexing, bending, or warping over time.

Furthermore, this hardware provides outstanding specification compatibility for diverse production requirements. Whether you are designing compact urban studio pieces or expansive family room sectionals, the mechanism integrates flawlessly into the framework. It accommodates various length requirements—ranging from 600mm to 1500mm—and thickness options, ensuring exact alignment across diverse modern folding furniture production lines. This adaptability significantly reduces the need for custom fabrication, streamlining the manufacturing process while guaranteeing a consistently stable end product that end-users can rely on night after night.

Hinge Mechanisms & Application Scenarios

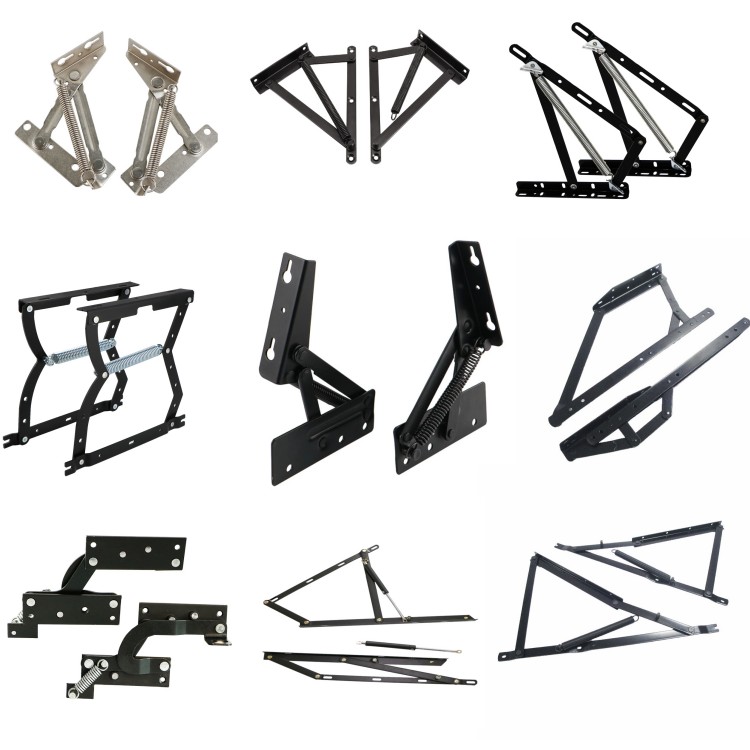

To achieve the perfect balance between fluid motion and secure locking, the core connection points of this mechanism utilize an advanced anti-loosening safety design. By incorporating reinforced screws and specialized thread-locking adhesives at critical junctions, the joints remain firmly intact even after thousands of high-frequency opening and closing cycles. This meticulous engineering eliminates the frustrating squeaks, rattles, and lateral wobbles often associated with standard hardware, ensuring a quiet, reassuringly solid operation. Such reliability makes the system widely applicable across demanding environments. It serves as the ideal backbone for medical rehabilitation nursing beds requiring precise, secure adjustments, multi-functional home sofa beds designed for daily conversion, and concealed Murphy wall beds where overhead safety is an absolute priority. Depending on the specific furniture architecture, different hinge configurations are utilized to maximize performance:

1. Scissor Hinges: Commonly used in fold-out sofa beds, these hinges allow the sofa to expand and contract smoothly. The precise geometry ensures a fluid, bind-free transition, allowing end-users to convert their seating into a sleeping surface with minimal physical effort and zero mechanical catching.

2. Piano Hinges: Long, continuous hinges that provide even support along the length of the sofa bed. By distributing the operational stress across a wider surface area, they prevent localized material fatigue and maintain the structural integrity of the frame over years of continuous use.

3. Butt Hinges: Smaller hinges used in specific areas for folding mechanisms. These compact yet formidable components are strategically placed to handle concentrated pivot loads, featuring tightly machined knuckles that eliminate lateral play and ensure exact alignment.

4. Barrel Hinges: Provide rotational movement and are often used in reclining or adjustable sofa designs. Their cylindrical design offers a visually discreet profile while delivering a satisfyingly smooth, controlled rotation that enhances the overall tactile experience of the furniture.

Pneumatic Performance & Space Optimization

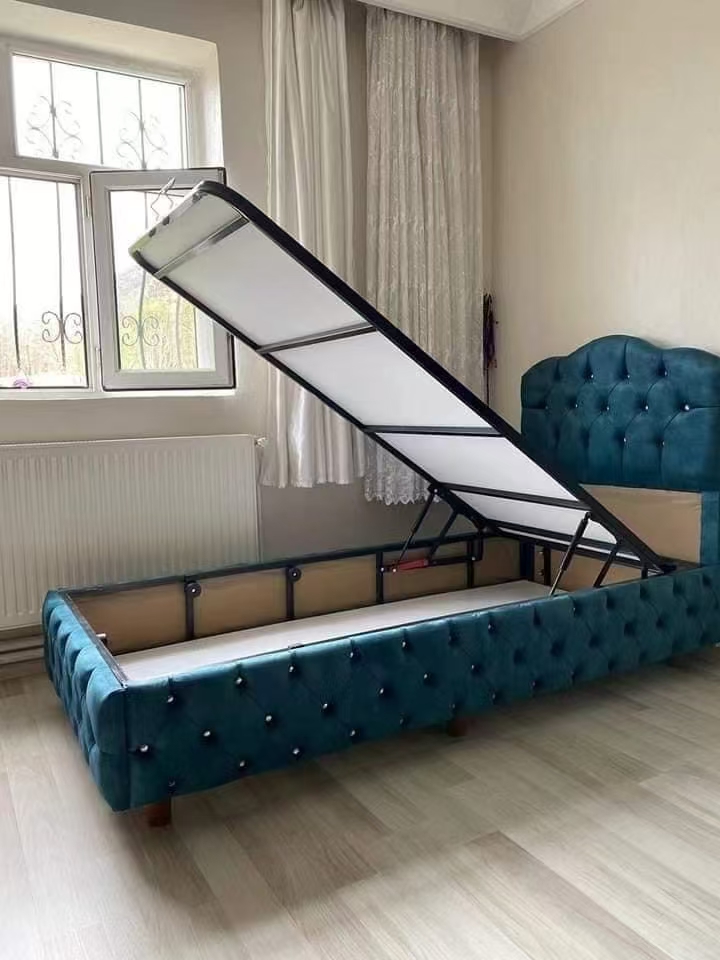

Modern interior design demands intelligent solutions that maximize every square inch of available room. This mechanism is specifically engineered to empower space-saving folding furniture, particularly frames equipped with concealed bottom storage boxes. By utilizing a sophisticated gas spring system, the hardware transforms what would typically be a heavy, cumbersome lifting process into a remarkably effortless experience. The premium hydraulic pneumatic springs deliver a smooth, whisper-quiet lift. When the user initiates the movement, the gas spring takes over the heavy lifting, providing a controlled, buoyant ascent that feels incredibly refined to the touch.

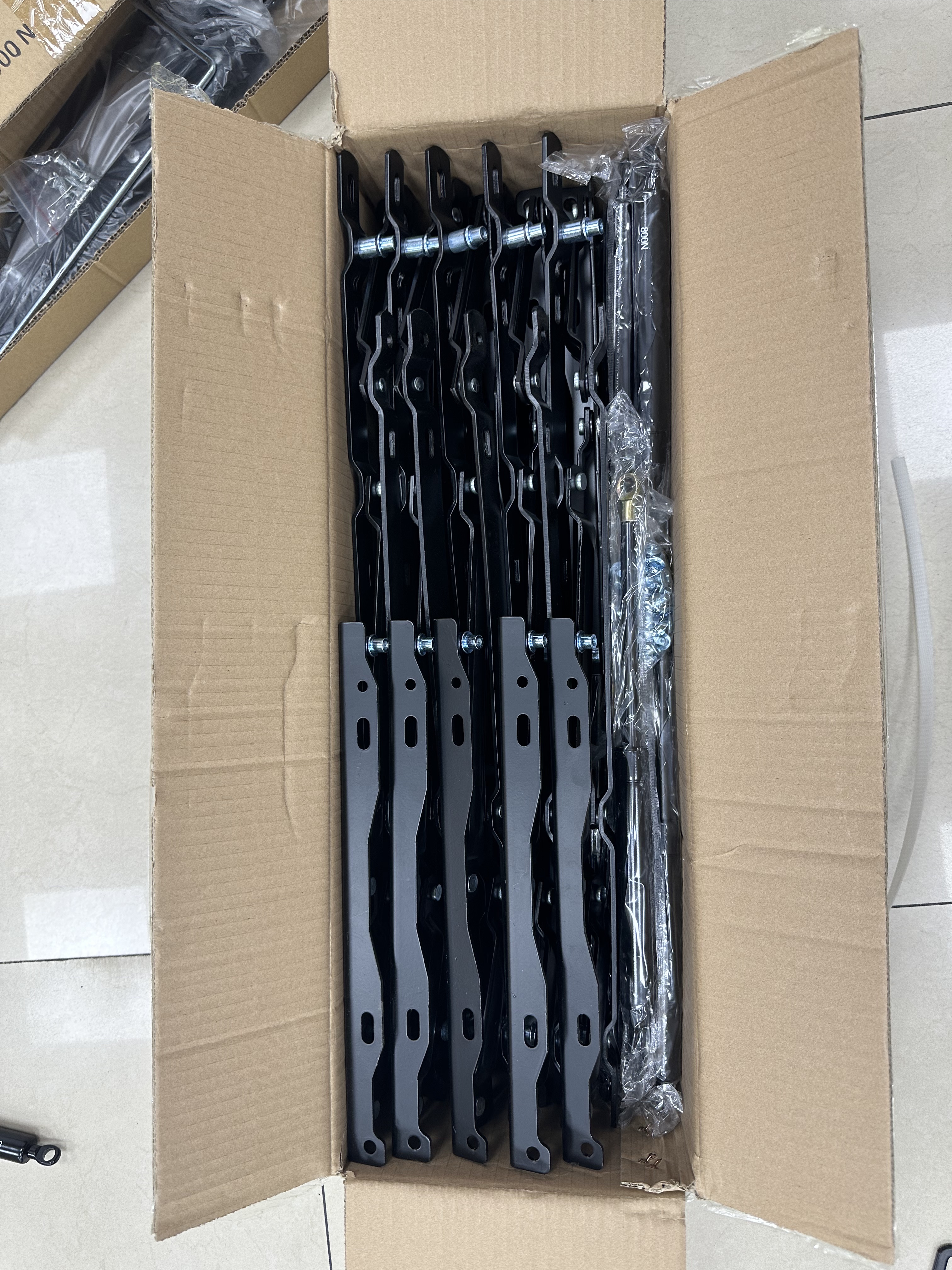

Conversely, during the closing phase, the system offers gentle, measured resistance to prevent sudden slamming. This controlled descent protects both the wooden furniture structure from impact damage and the user's hands from pinching hazards. This superior kinetic feedback significantly elevates the perceived value and handling quality of the finished furniture piece, making it a strong selling point on the showroom floor. Furthermore, the compact physical profile of the mechanism itself ensures that it does not intrude upon the valuable internal storage capacity, leaving ample room for bedding and household items. Every component is securely packed—10 pairs per carton—ensuring that the hardware arrives in pristine condition, ready to be integrated into production lines that prioritize both aesthetic elegance and functional spatial efficiency.
