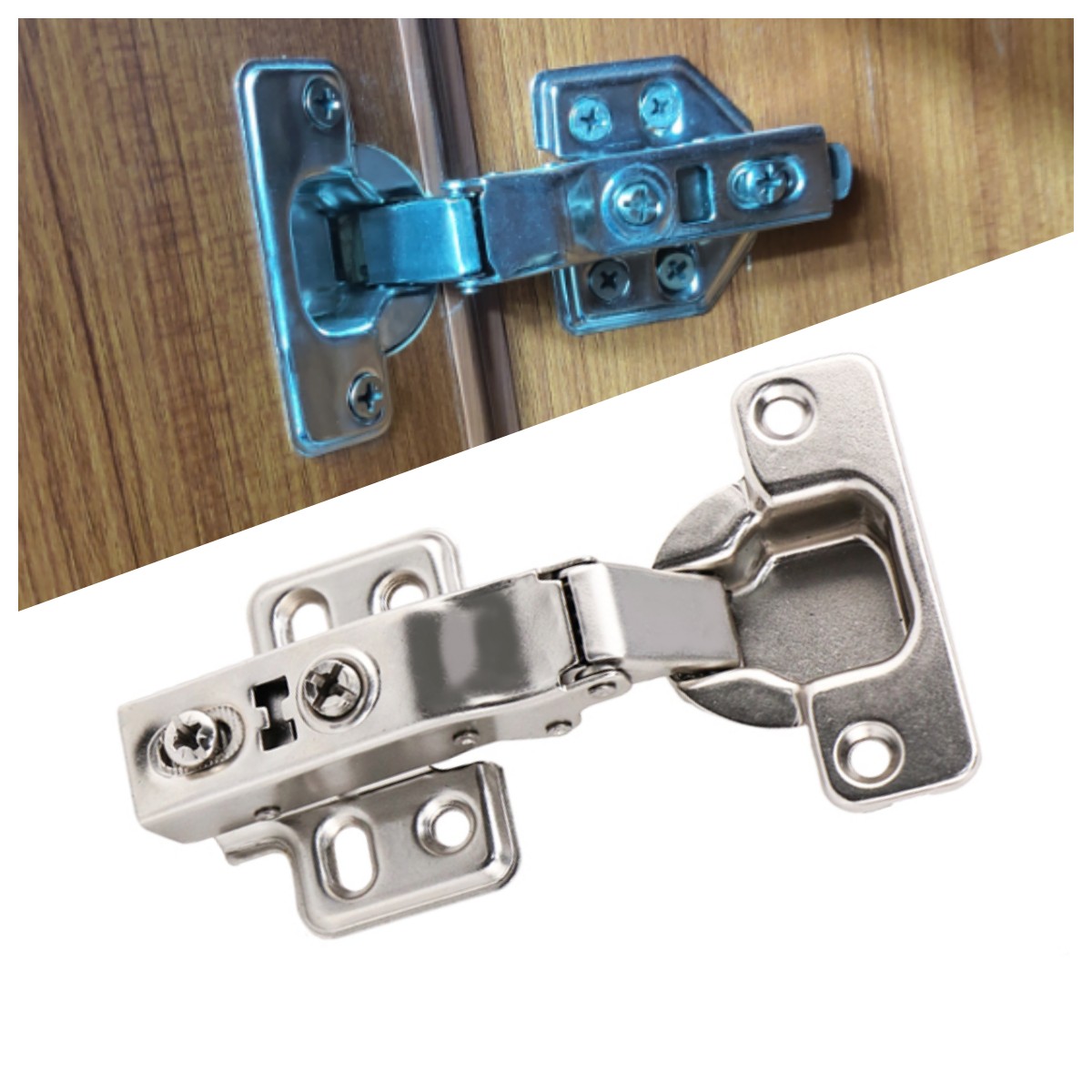

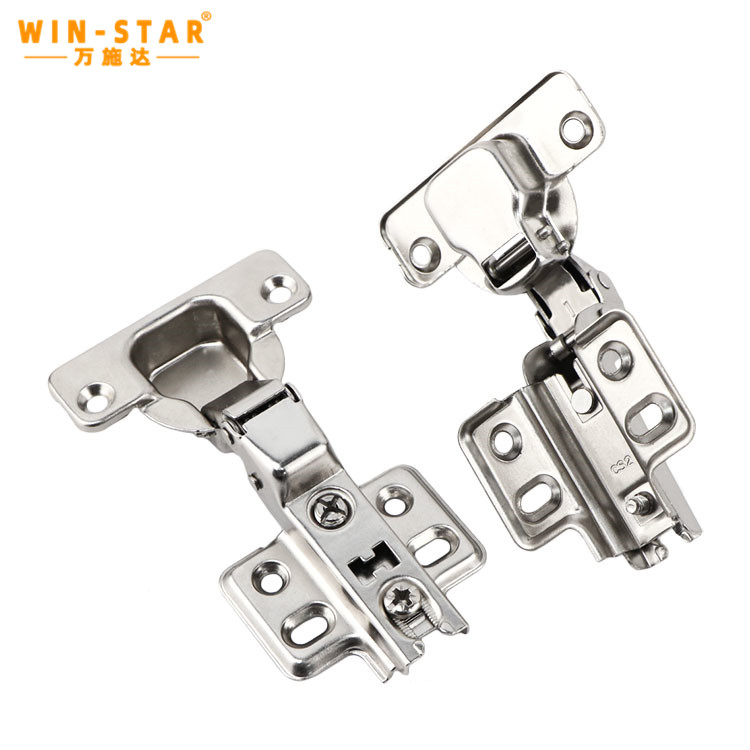

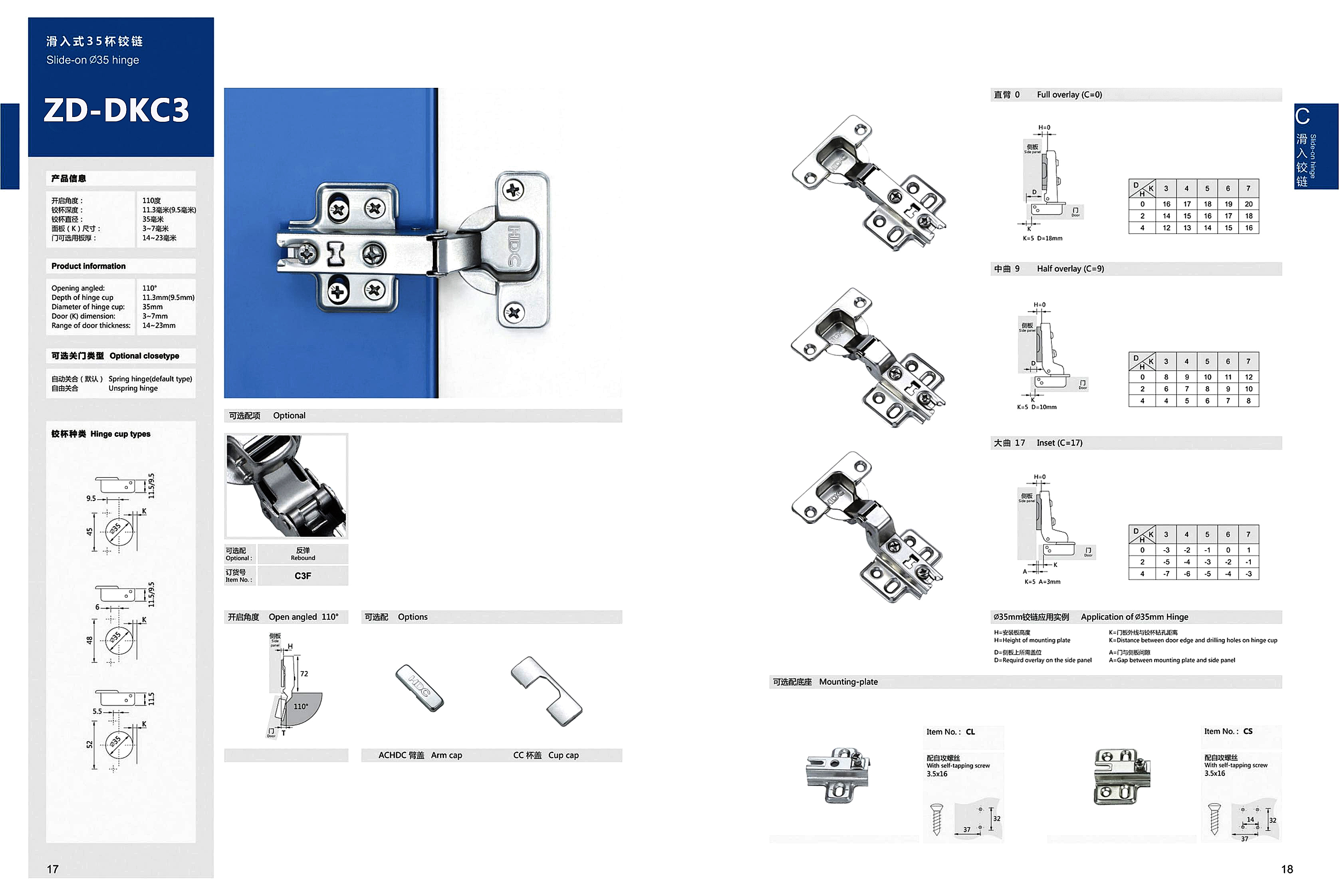

Product Overview: Slide-On 35mm Soft Close Cabinet Hinge
Engineered for demanding environments, this slide-on 35mm cup cabinet hinge combines structural resilience with refined motion control. Crafted from commercial-grade cold-rolled steel, the core material provides exceptional tensile strength, preventing deformation under the weight of heavy solid wood or MDF doors. The surface undergoes a rigorous electroplating process—available in specialized zinc or nickel finishes—creating a smooth, cool-to-the-touch metallic exterior. This anti-corrosive layer acts as a formidable barrier against moisture, ensuring long-lasting rust resistance even in humid commercial kitchens, laboratory settings, or locker rooms.
Beyond its heavy-duty construction, the defining feature is the integrated high-performance hydraulic damping cylinder. As the cabinet door swings shut, the fluid dynamics within the brass damper engage smoothly, taking over the momentum to deliver a slow, controlled, and silent closure. This eliminates the harsh, disruptive sound of wood striking wood, creating a more serene acoustic environment. By absorbing the kinetic impact, the soft-close mechanism also significantly reduces mechanical stress on both the door hinges and the cabinet frame, drastically lowering maintenance needs and extending the functional lifespan of the furniture.
Technical Specifications
To guarantee perfect integration into standardized manufacturing workflows, this hardware adheres to strict dimensional tolerances. The precise measurements ensure compatibility with universal boring patterns, allowing for rapid deployment across various cabinet styles without the need for custom re-tooling.
- Opening angled:110 degree
- Depth of hinge cup:11.3mm(9.5mm)
- Diameter of hinge cup:35mm
- Door (K) dimension:3~7mm
- Range of door thickness:14~ 23mm

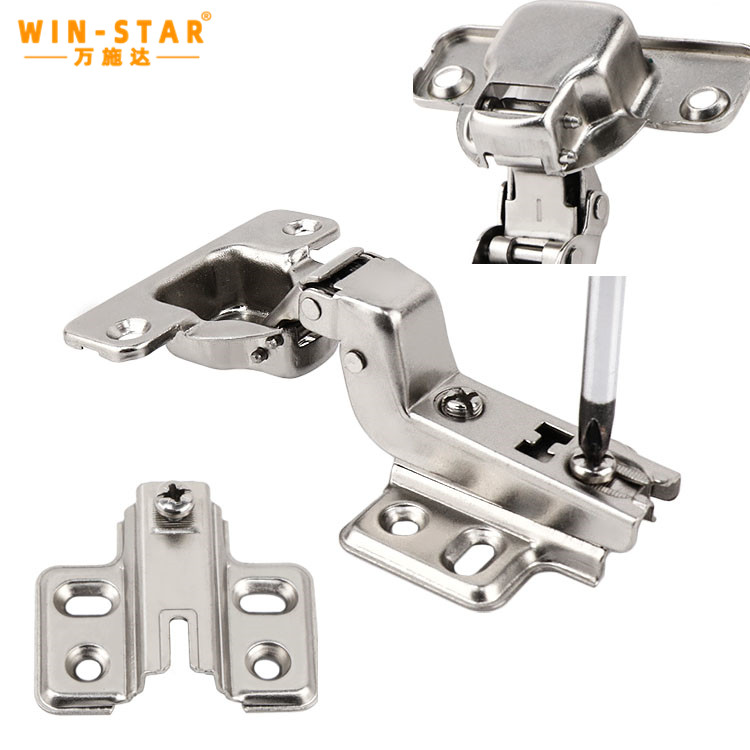

Multi-Dimensional Adjusting Screw Mechanism
Precision alignment is a critical factor in large-scale furniture production and assembly. This hinge system is equipped with a highly responsive, multi-dimensional adjusting screw mechanism designed to streamline the installation process. Installers can achieve perfect alignment by simply manipulating the tuning screws, which provide a satisfying, tactile resistance to ensure they do not loosen over time due to vibration. This allows for micro-adjustments across multiple axes—depth, side, and height—without the need to remove the door or dismantle the hardware.
Using adjustment screws for distance adjustment,so that the two sides of the cabinet door more ft. The integration of these adjustment screws, combined with a quick-install slide-on base, drastically increases the fault tolerance during cabinet assembly. It effortlessly compensates for slight natural warping in wooden panels or minor measurement discrepancies. Whether you are aligning a single executive wardrobe or outfitting an entire corporate office complex with uniform storage units, this intuitive system ensures that both sides of the cabinet door fit perfectly flush. Consequently, this drastically reduces manual labor time, minimizes the need for costly on-site modifications, and directly improves project turnaround times for large installations.

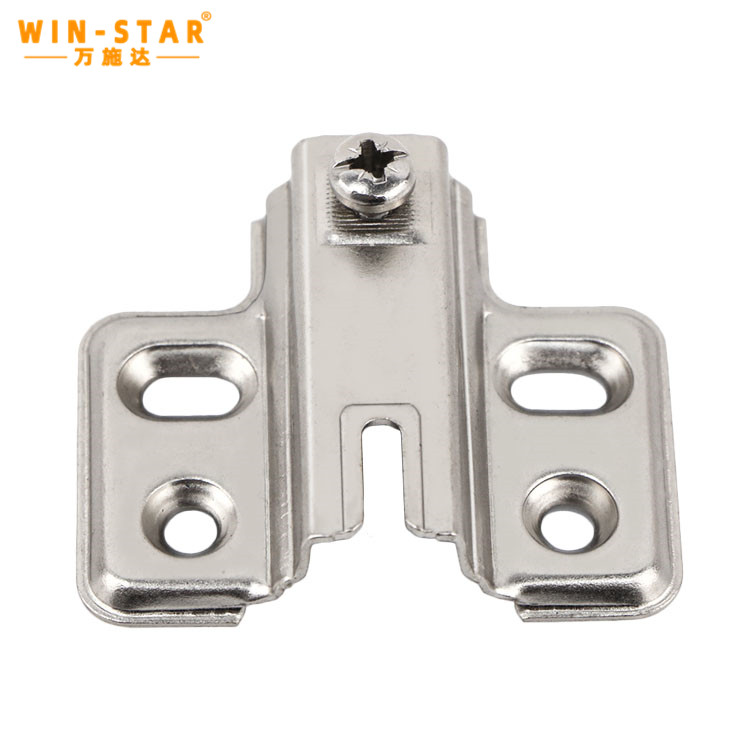

Enlarged Pressed Area & Structural Stability
A frequent point of failure in heavy or frequently used cabinetry is the gradual detachment of the hinge from the cabinet wall. To counteract this stress, our design incorporates an intentionally enlarged pressed area on the mounting plate. This expanded contact footprint distributes the load and torque of the door much more evenly across the side panel.

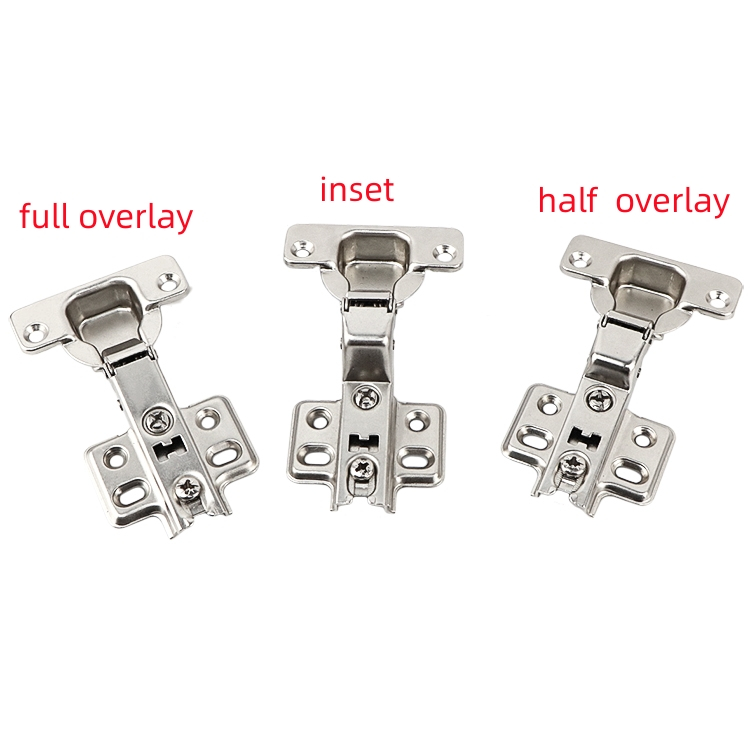

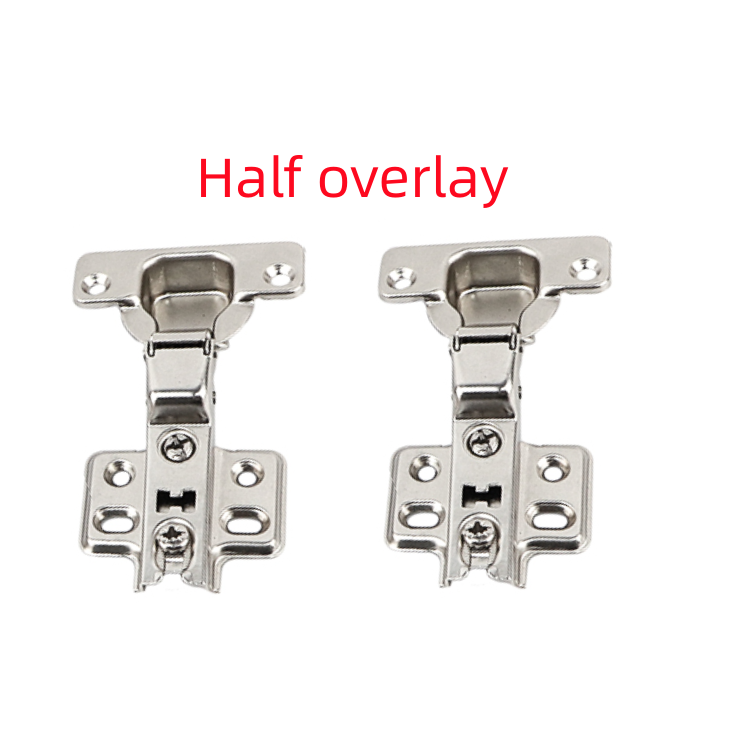

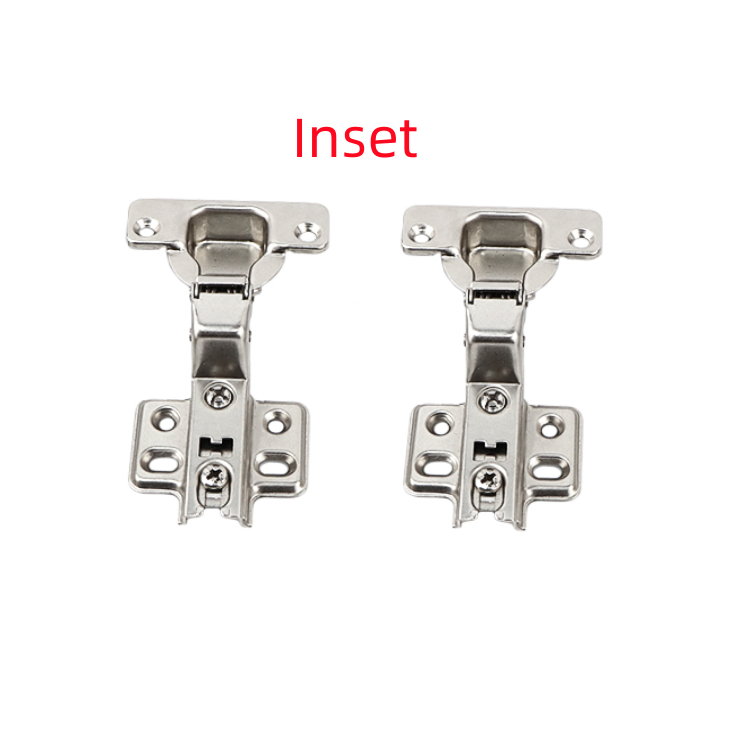

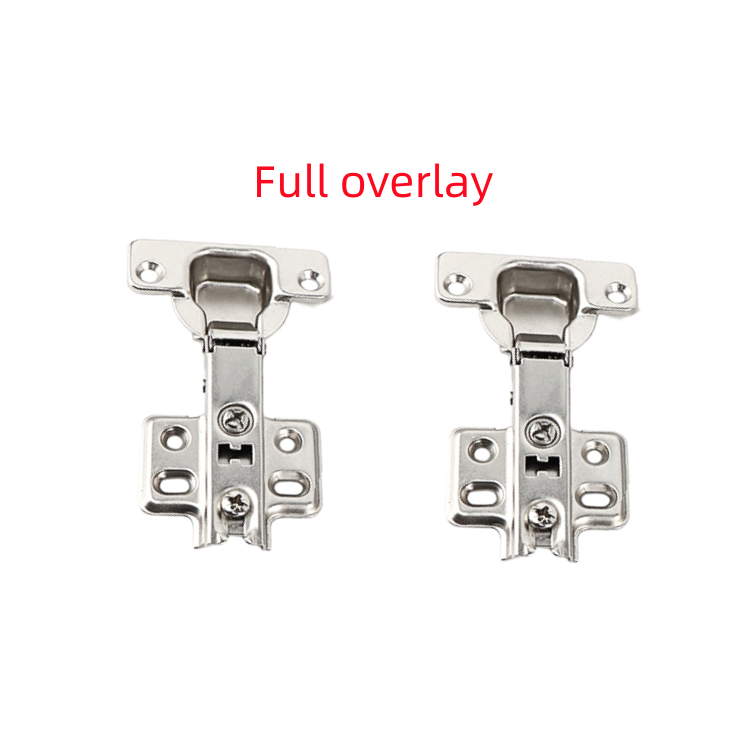

With more pressed area the hinge will be stronger fix on the side panel. The result is a substantially stronger, more rigid fixation that anchors the hardware securely, preventing the door from sagging or dropping even after tens of thousands of opening cycles. This solid structural foundation provides exceptional adaptability across a wide spectrum of design requirements. The comprehensive hinge series is fully compatible with full overlay, half overlay, and inset cabinet door configurations, making it a versatile choice for diverse applications. From residential kitchen renovations requiring sleek, hidden hardware to demanding commercial office furniture that endures constant daily use, the structural integrity of the enlarged base maintains a crisp, uniform gap line. It ensures that every door hangs perfectly parallel, enhancing the overall aesthetic and functional quality of the finished furniture piece.
Packaging Specifications & Supply Chain Reliability
To effectively support large-scale manufacturing operations and global distribution networks, these 35mm cup soft-close hinges are supplied as comprehensive, ready-to-deploy kits. Each standardized package is carefully curated to include the primary hinge body, the corresponding quick-release mounting base, and a complete set of precisely matched self-tapping screws. By providing a complete hardware solution in one package, we eliminate the frustrating need for secondary component sourcing, thereby accelerating the workflow and reducing bottlenecks on busy factory assembly lines.
Understanding the complexities of high-volume procurement, we structure our fulfillment services to align perfectly with rigorous production schedules. We offer highly competitive, tiered volume structures designed to help procurement teams optimize their overall material costs while maintaining strict budget controls. Furthermore, our established, scalable production capacity guarantees stable lead times, ensuring that your manufacturing pipelines remain uninterrupted regardless of order size. Every bulk shipment is protected by moisture-resistant packaging and backed by comprehensive post-purchase support, safeguarding your investment from the factory floor all the way to the final installation site.
